TABLE TOP CALANDER

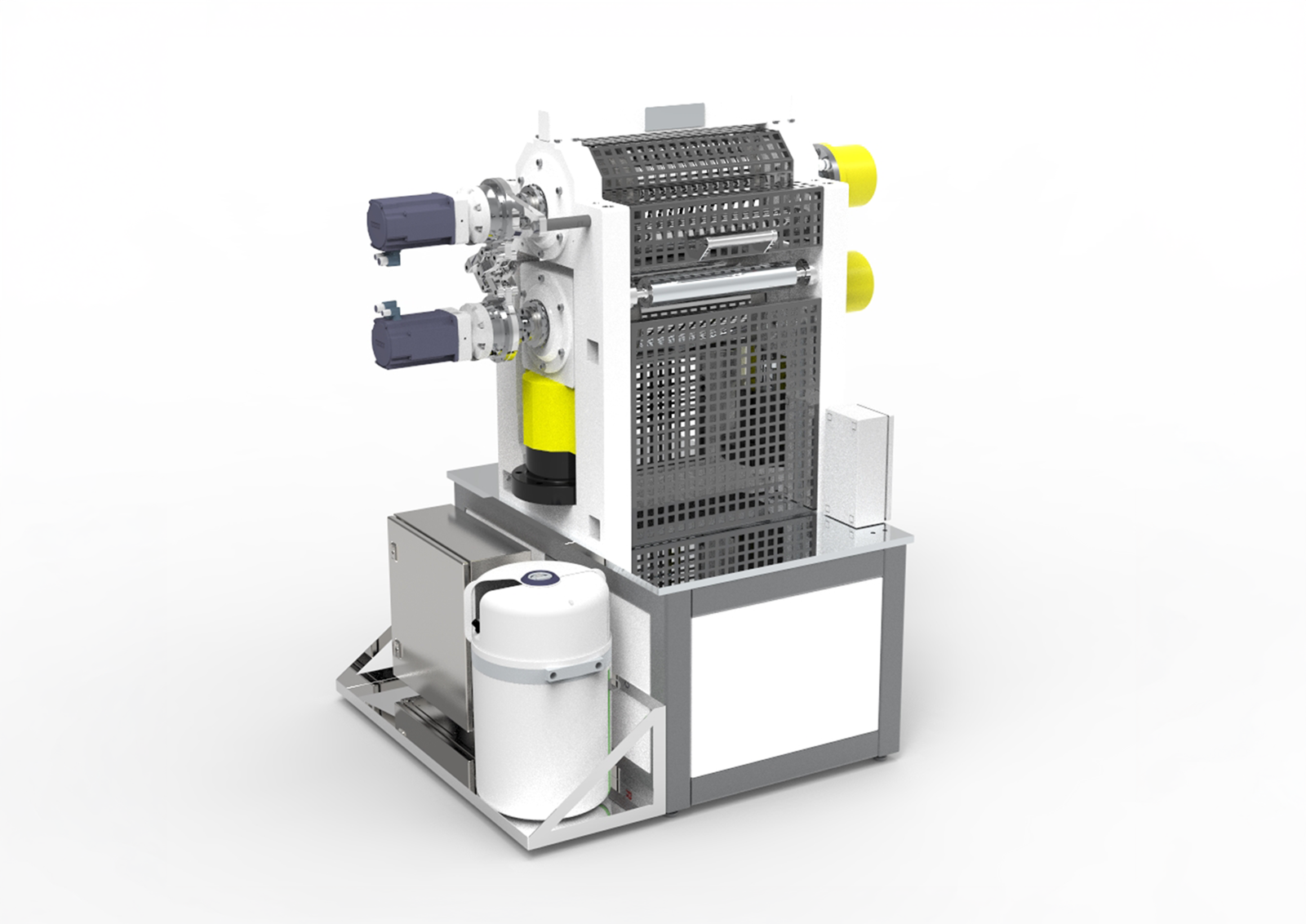

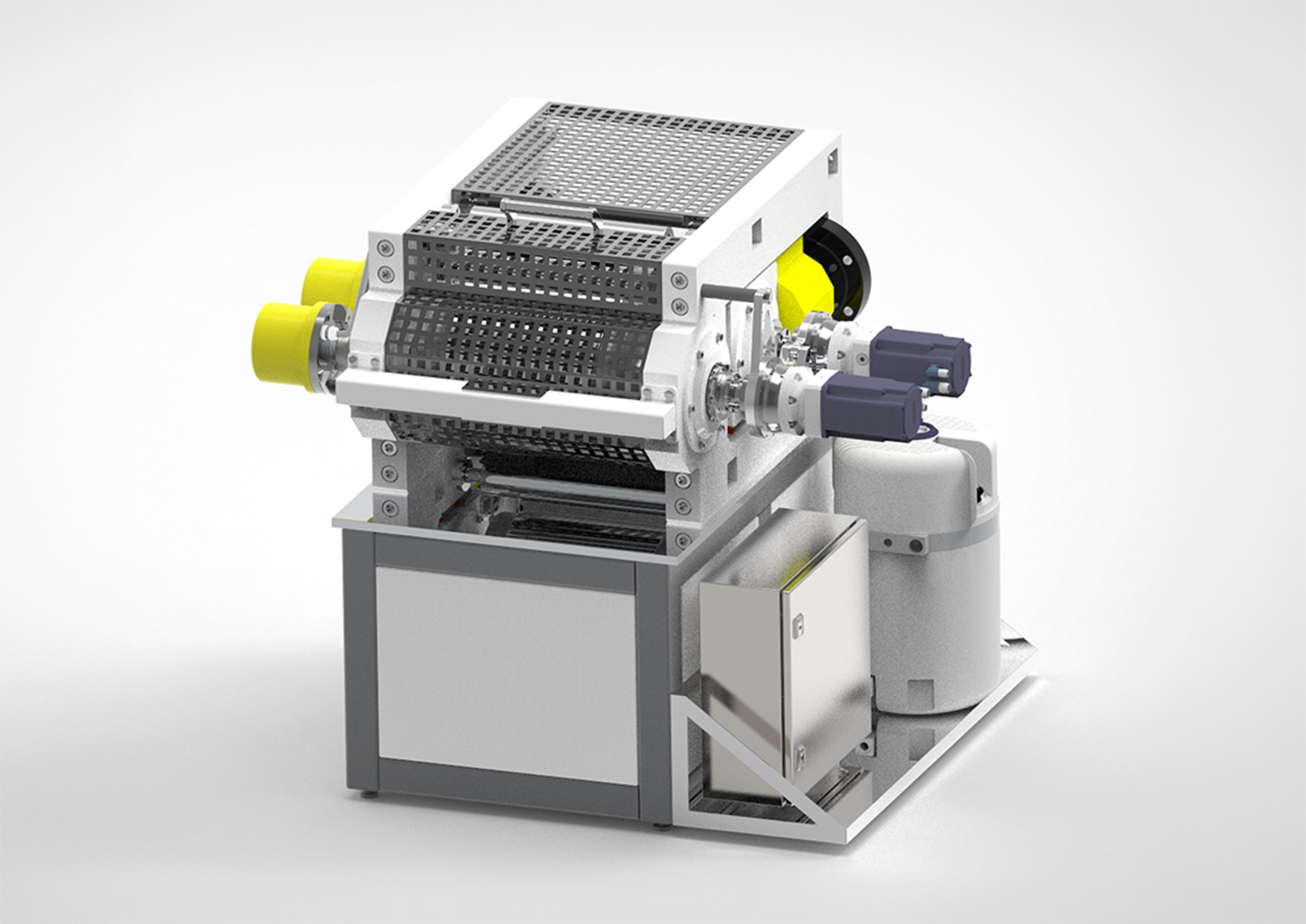

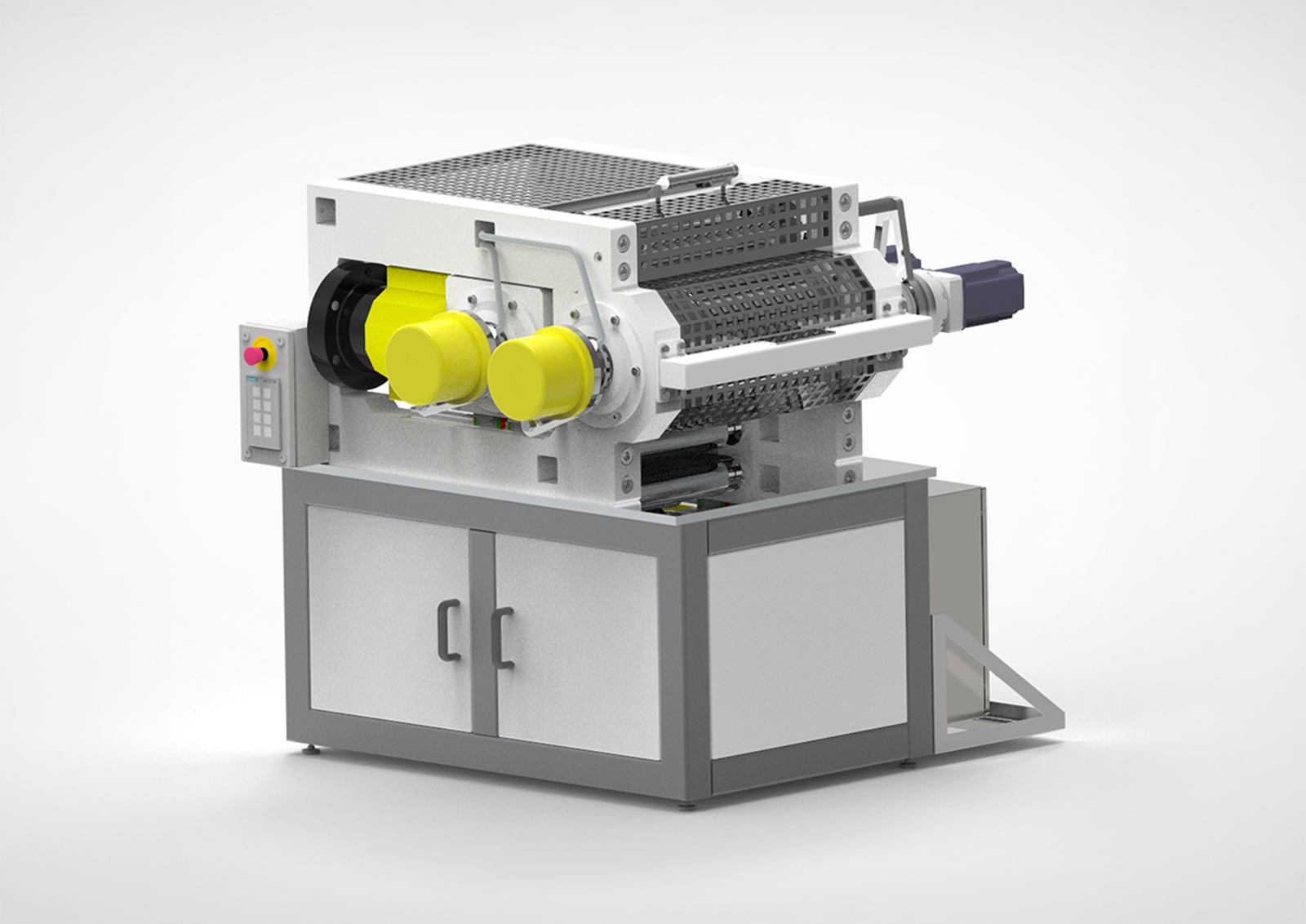

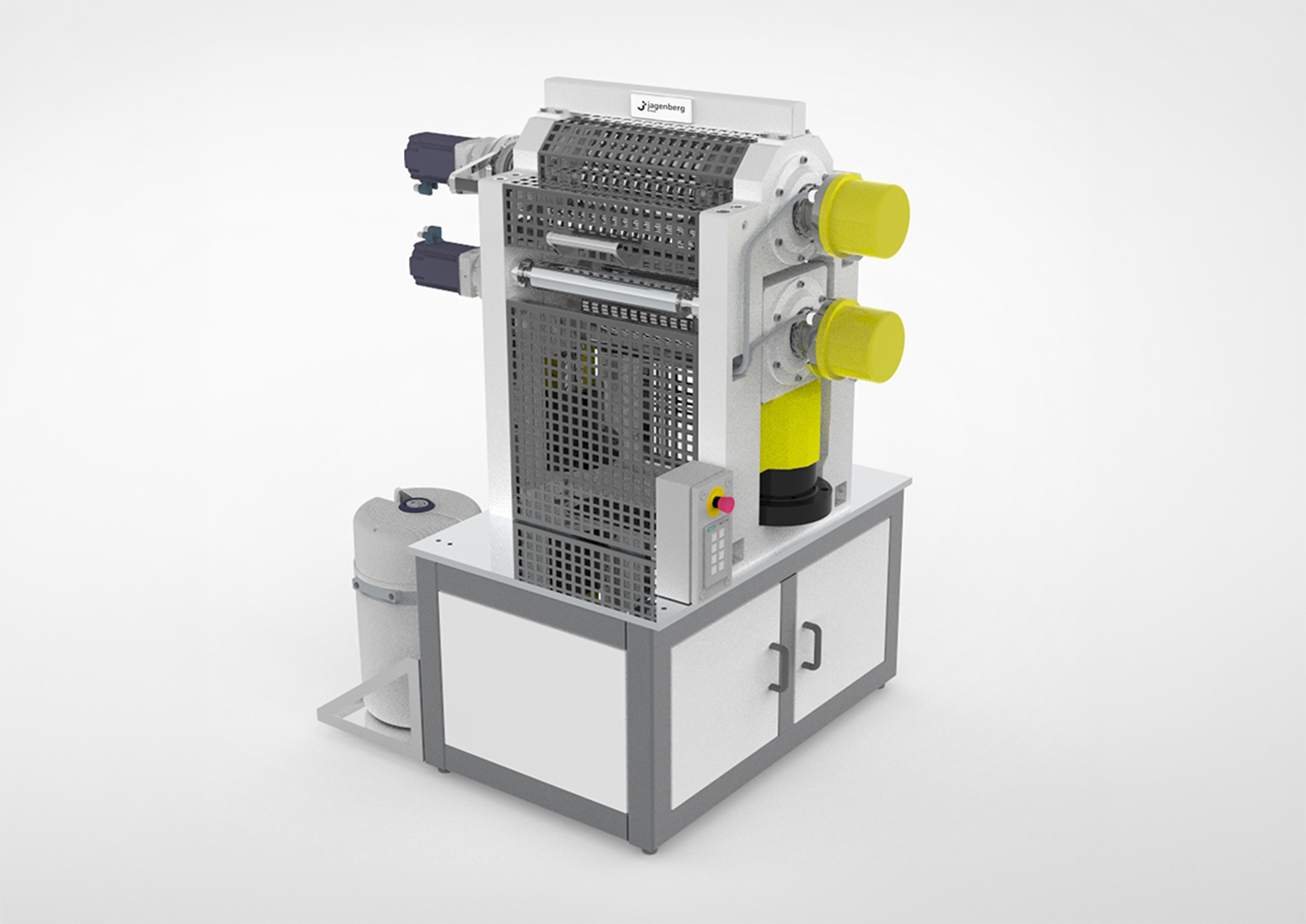

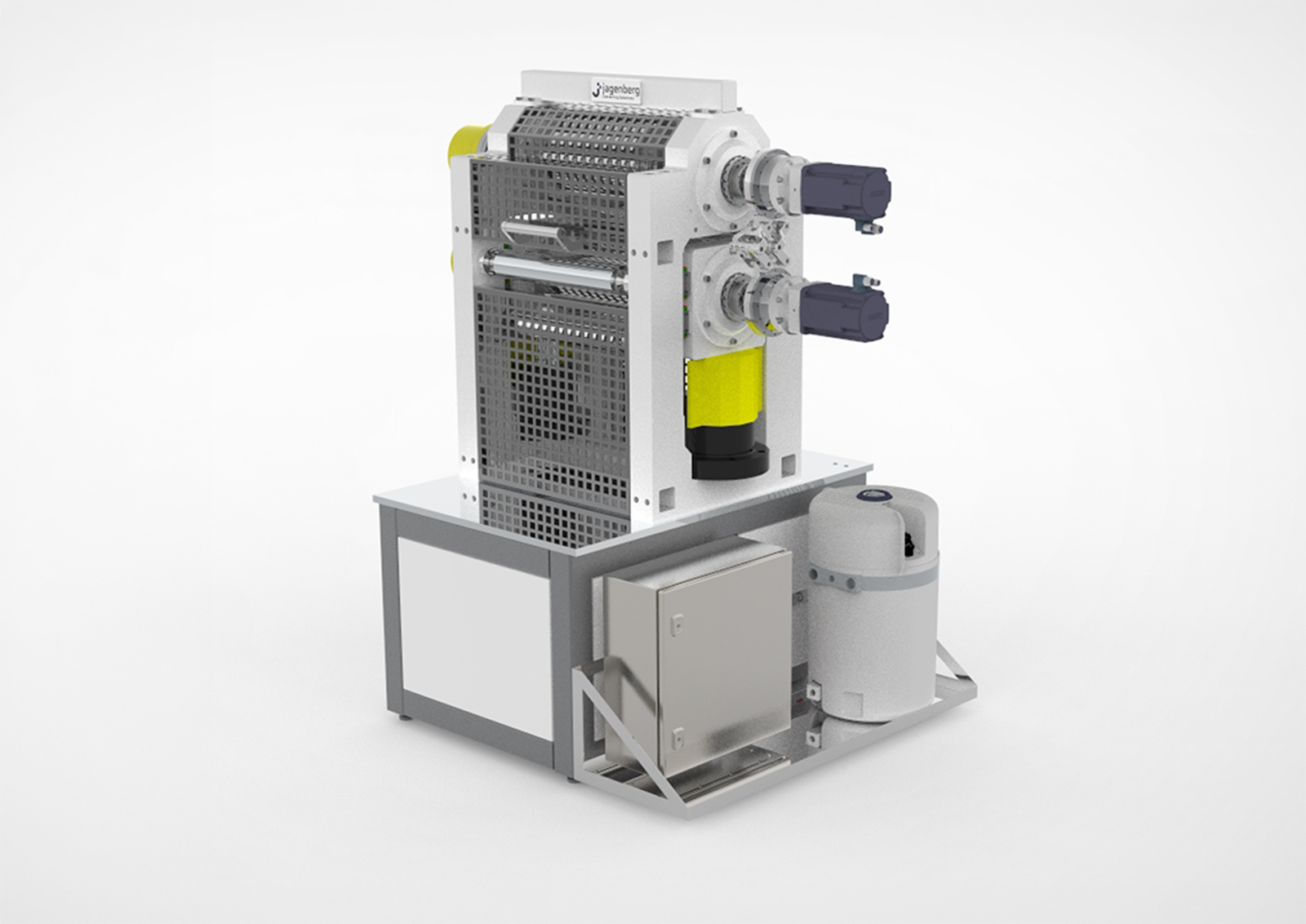

Our precision laboratory calender enables accurate simulation of industrial calendering processes on a laboratory scale, allowing you to develop and optimize your products and processes seamlessly across both continuous roll-to-roll and single-sheet formats.
| Working width | 100-300 mm |
| Roller diameter | 300 mm |
| Load capacity | 30 t (300 kN) |
| Mechanical speed | 0.1-10 m/min |
| Gap adjustment | Servo-hydraulics |
| Gap accuracy | ± 1 μm |
| Roll heating | ≤ 150 °C (electric) |
Ideal for advanced material development
Configurable for vertical or horizontal orientation, smoothly transitions between single-sheet feeding and continuous roll-to-roll processing.
Hydraulic gap or pressure control system paired with a position measurement system for continuous gap monitoring.
Electrically heated rolls ensuring precise, uniform thermal distribution.
Integrated roll cleaning system (doctor blade) to maintain uncontaminated operation and consistent product quality.
Options, such as unwinders/rewinders or thickness measurement systems extend functionality.
