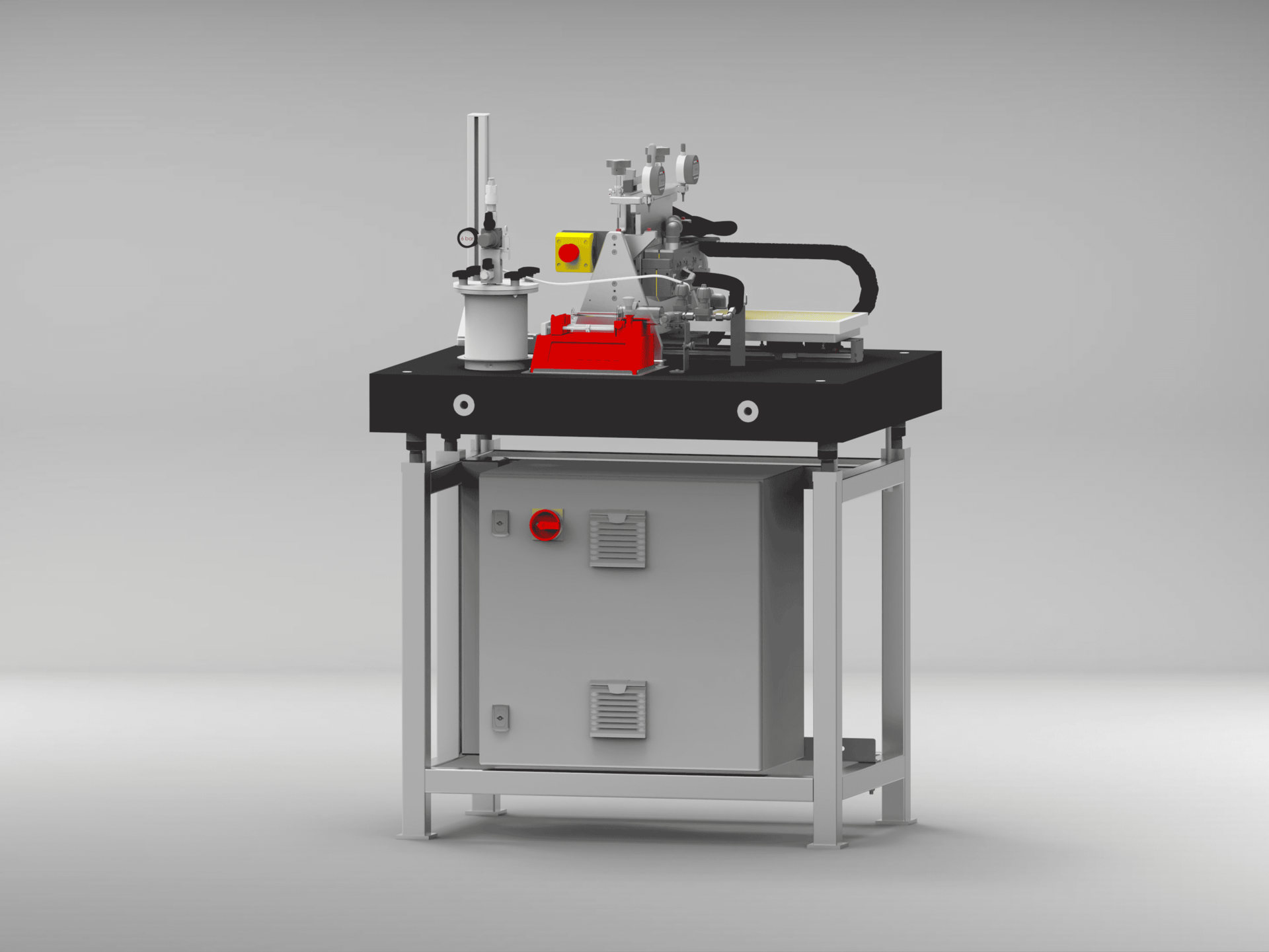

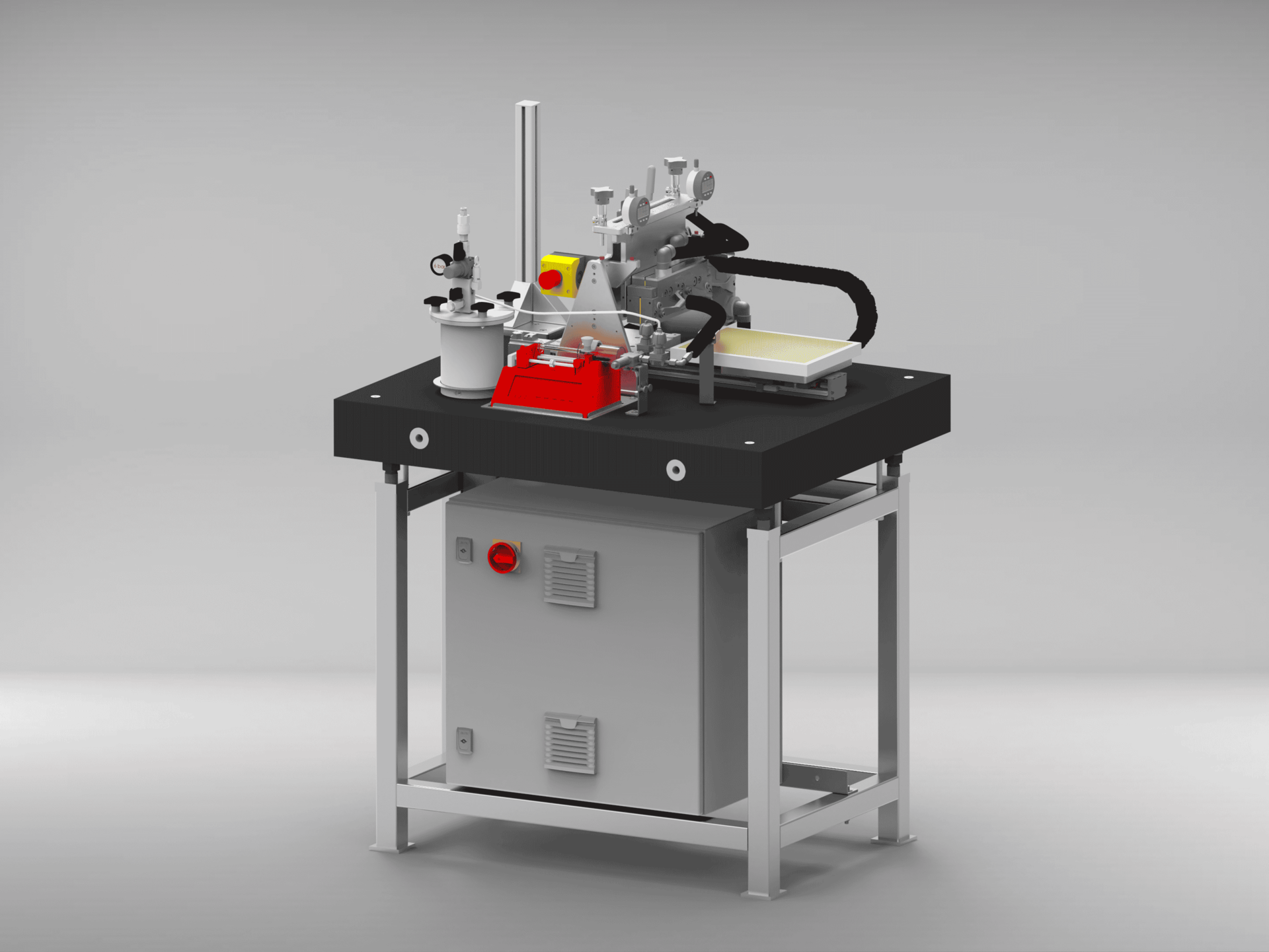

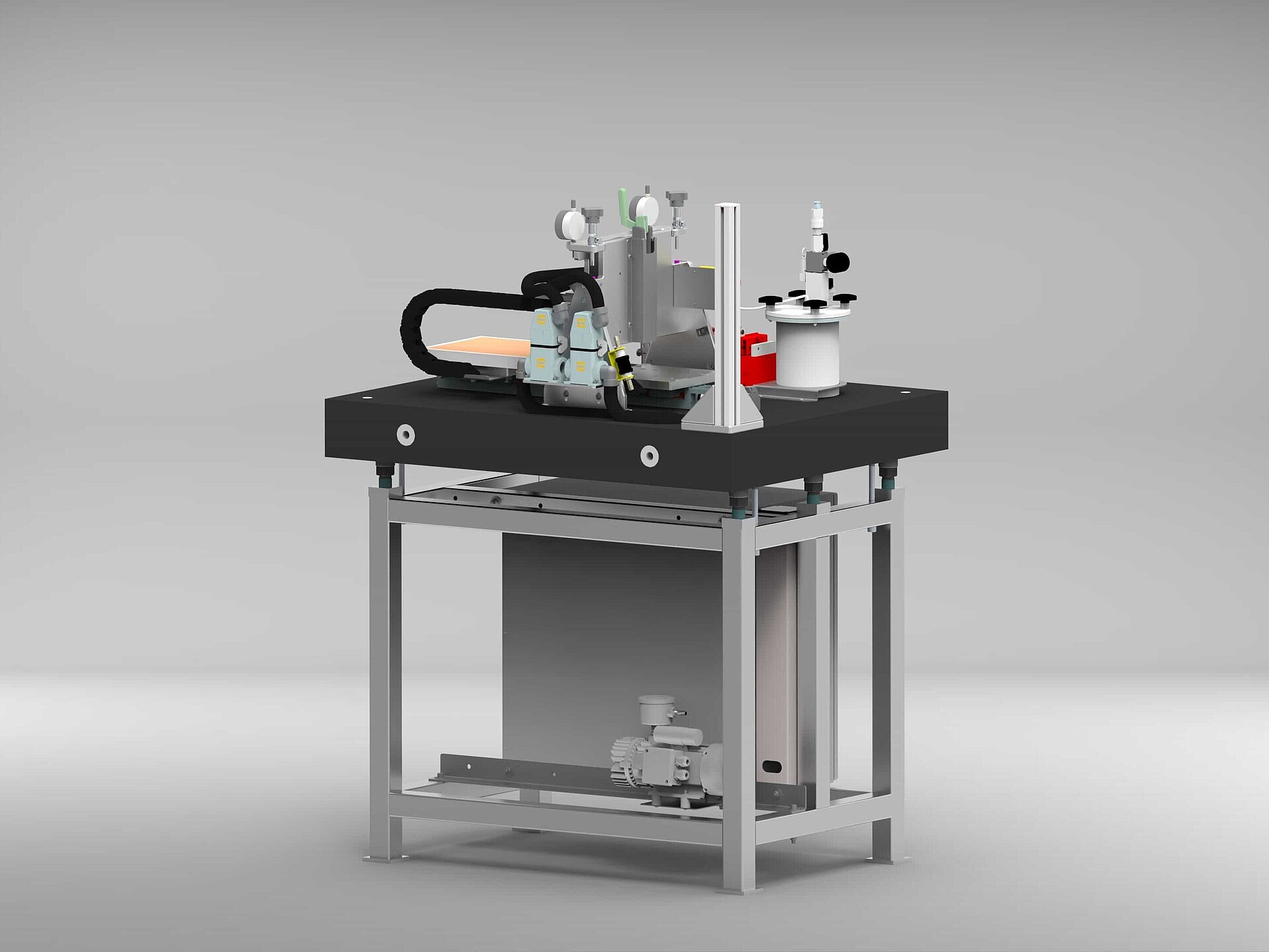

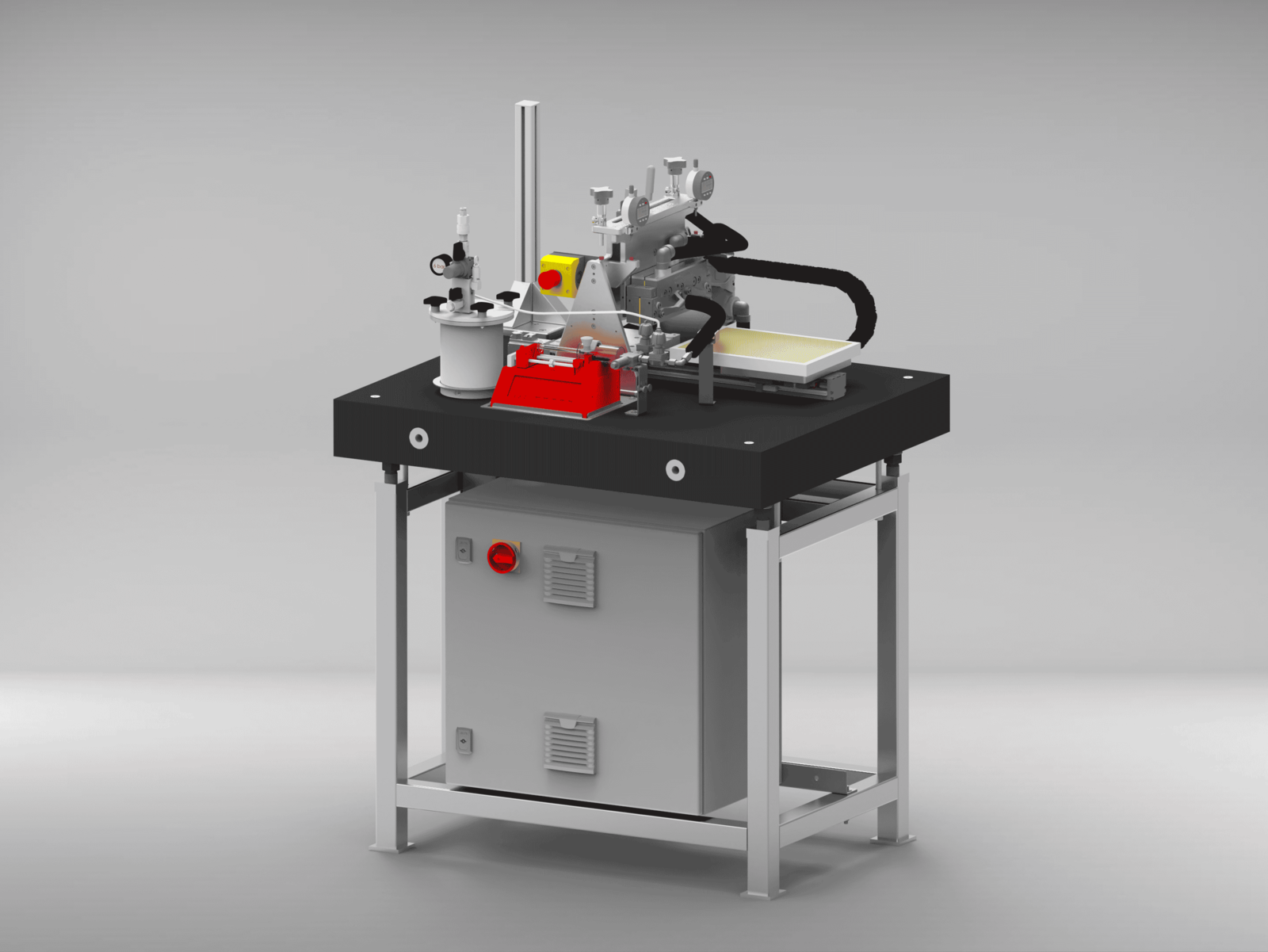

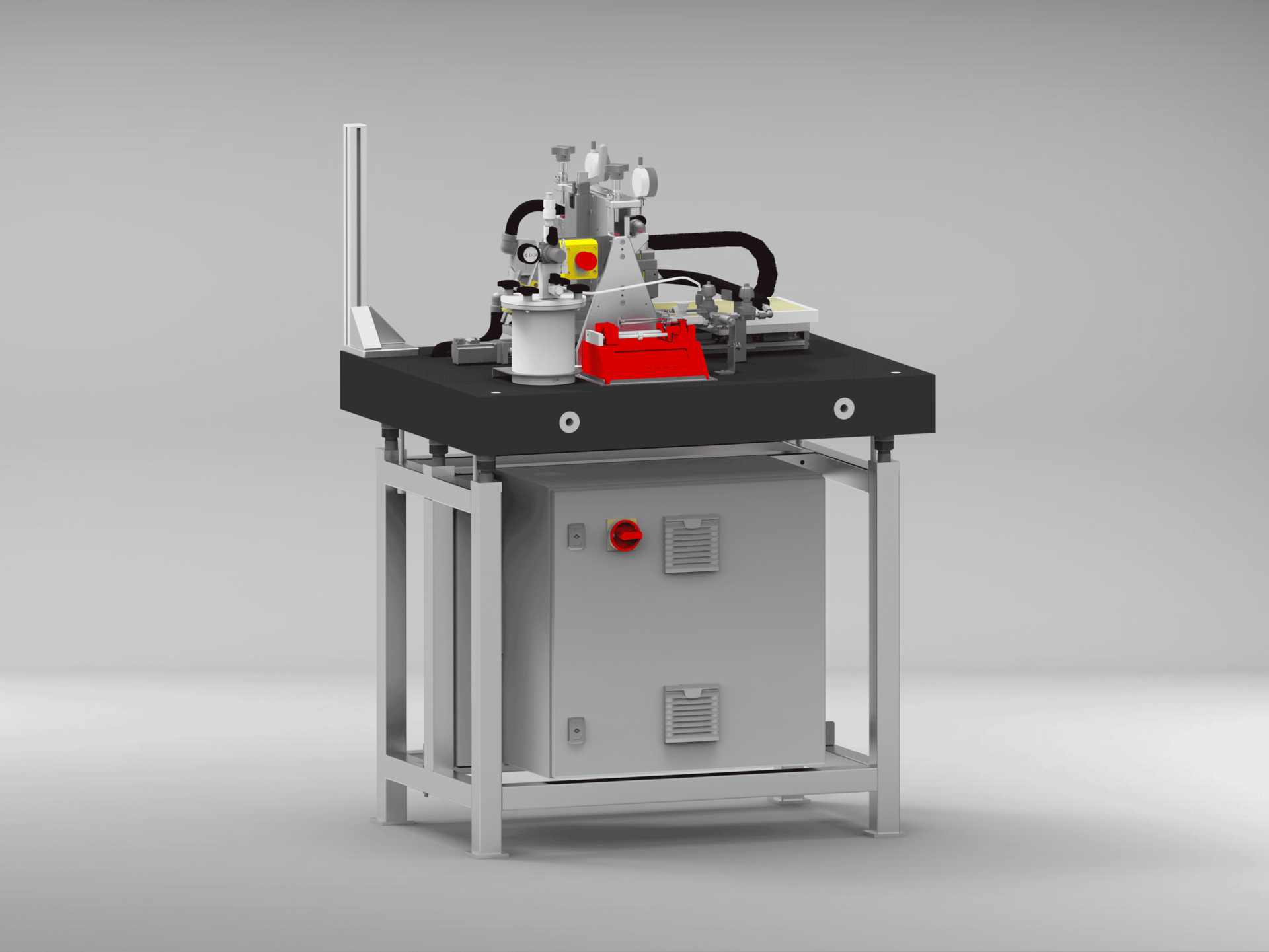

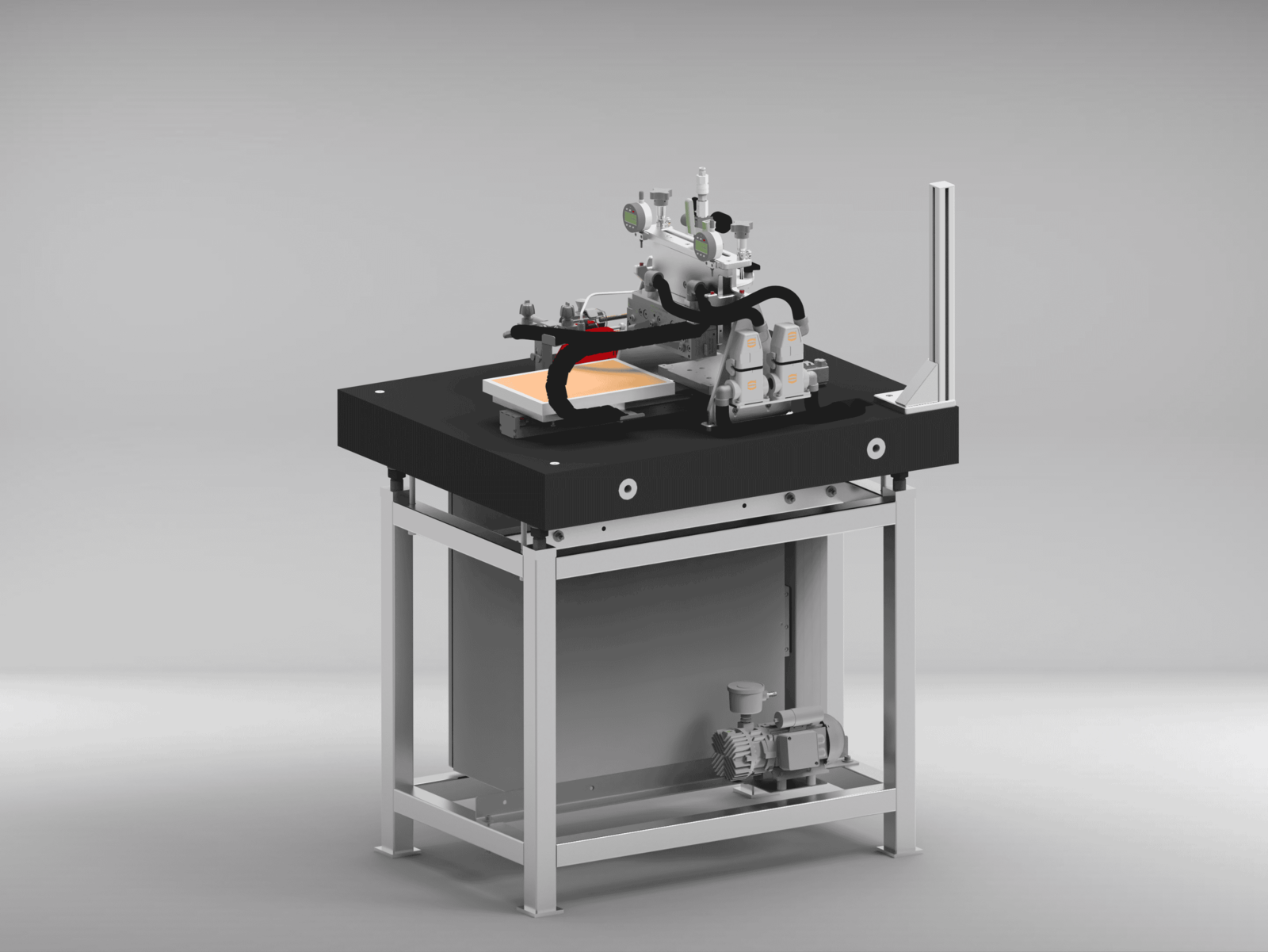

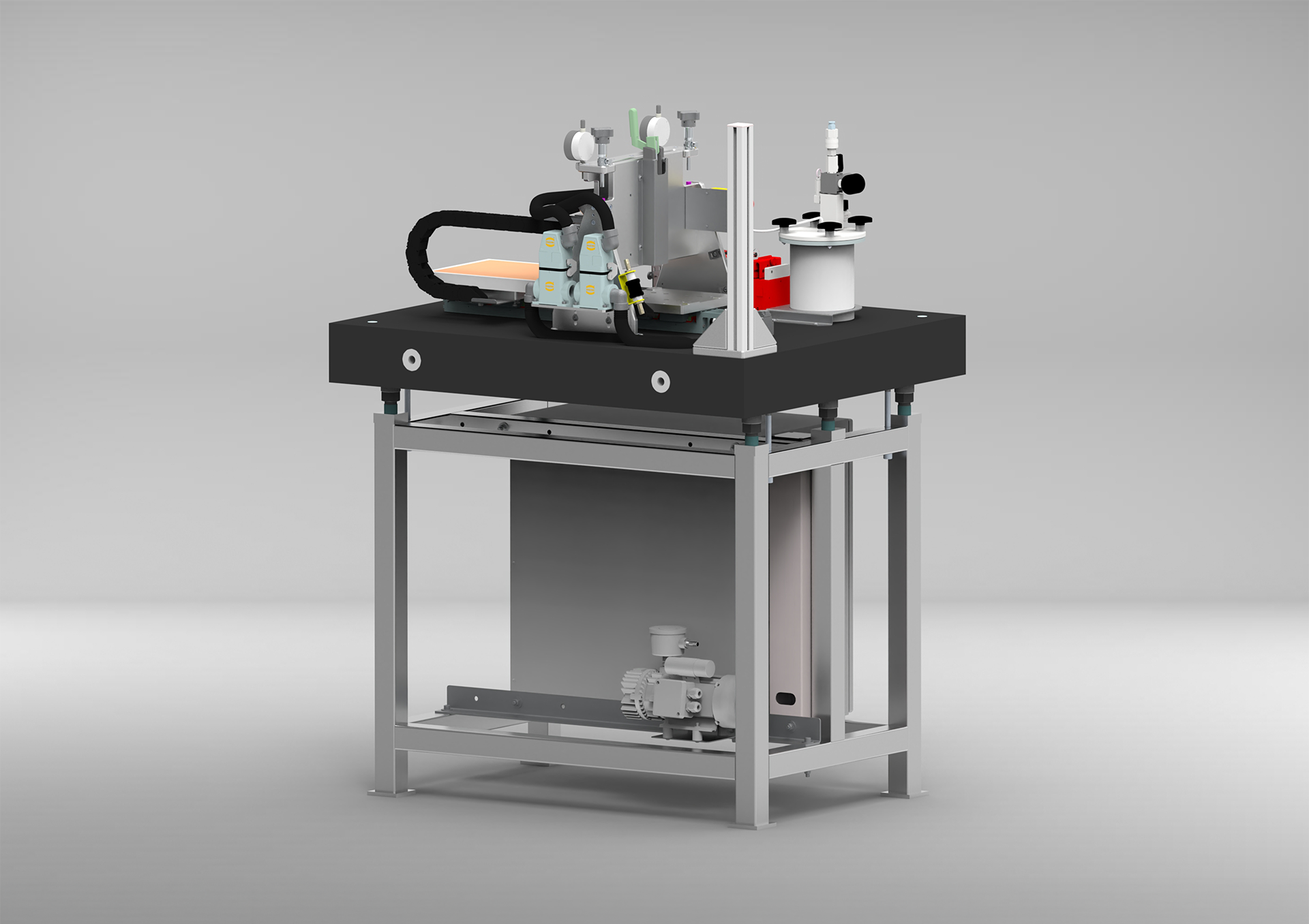

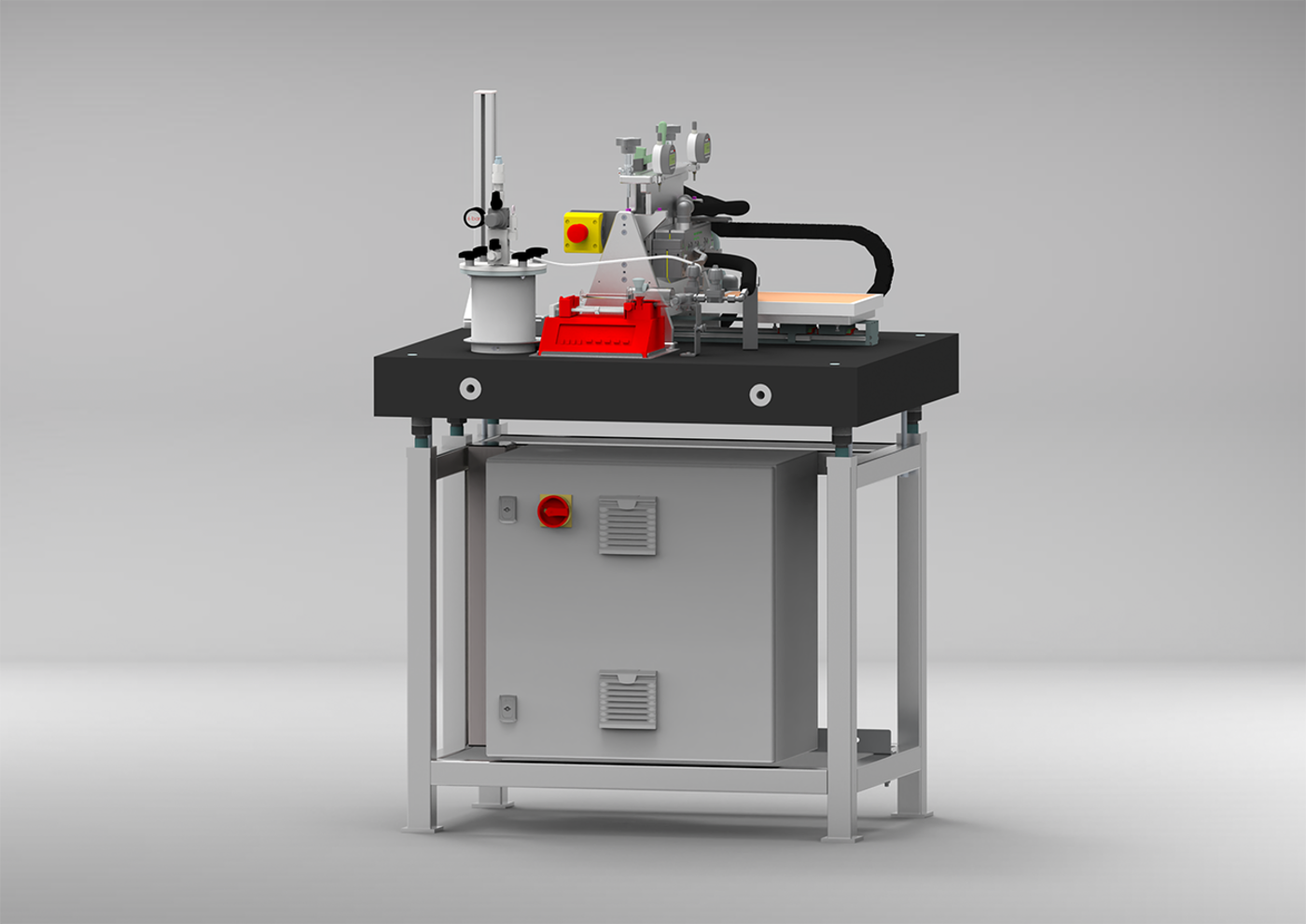

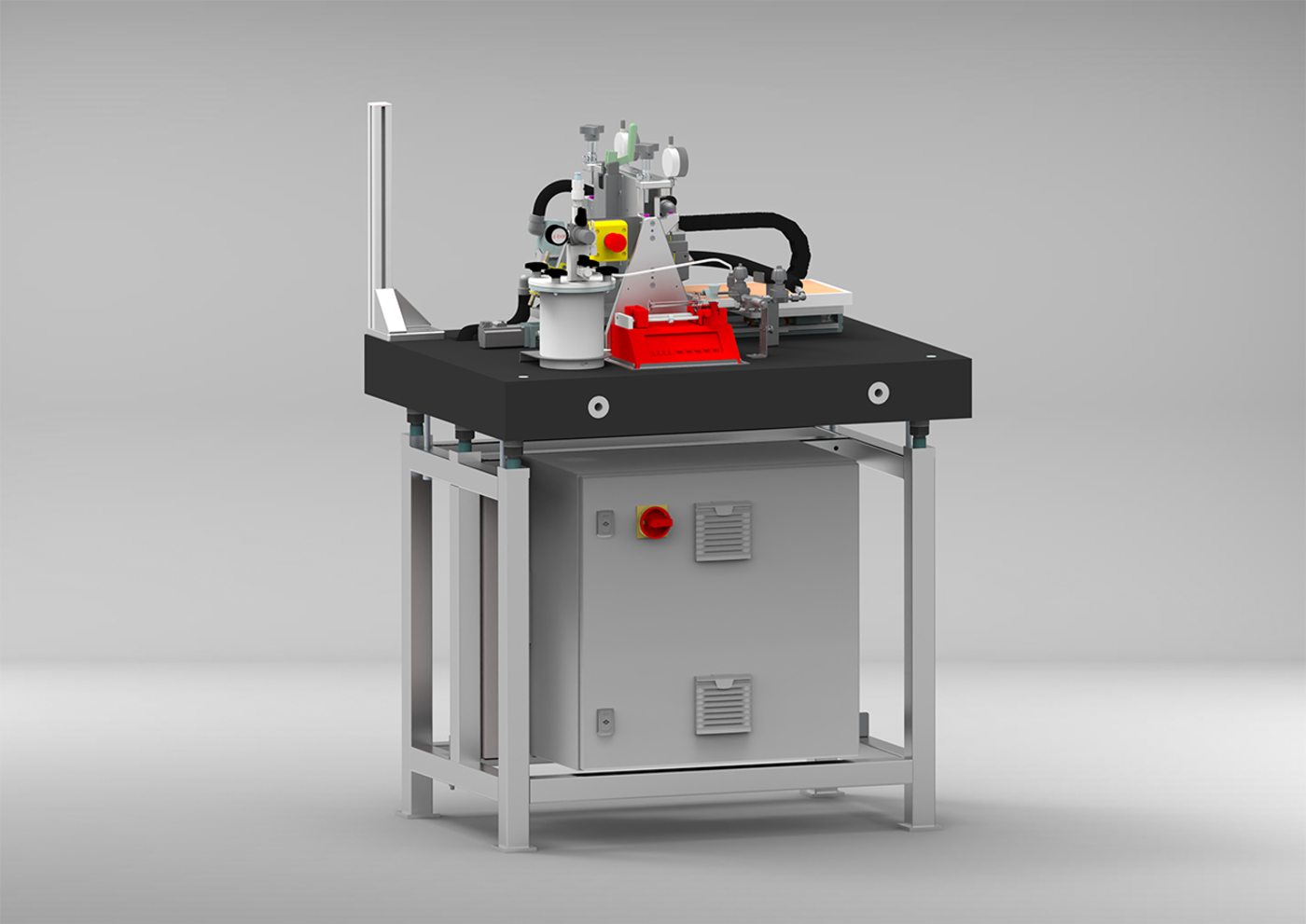

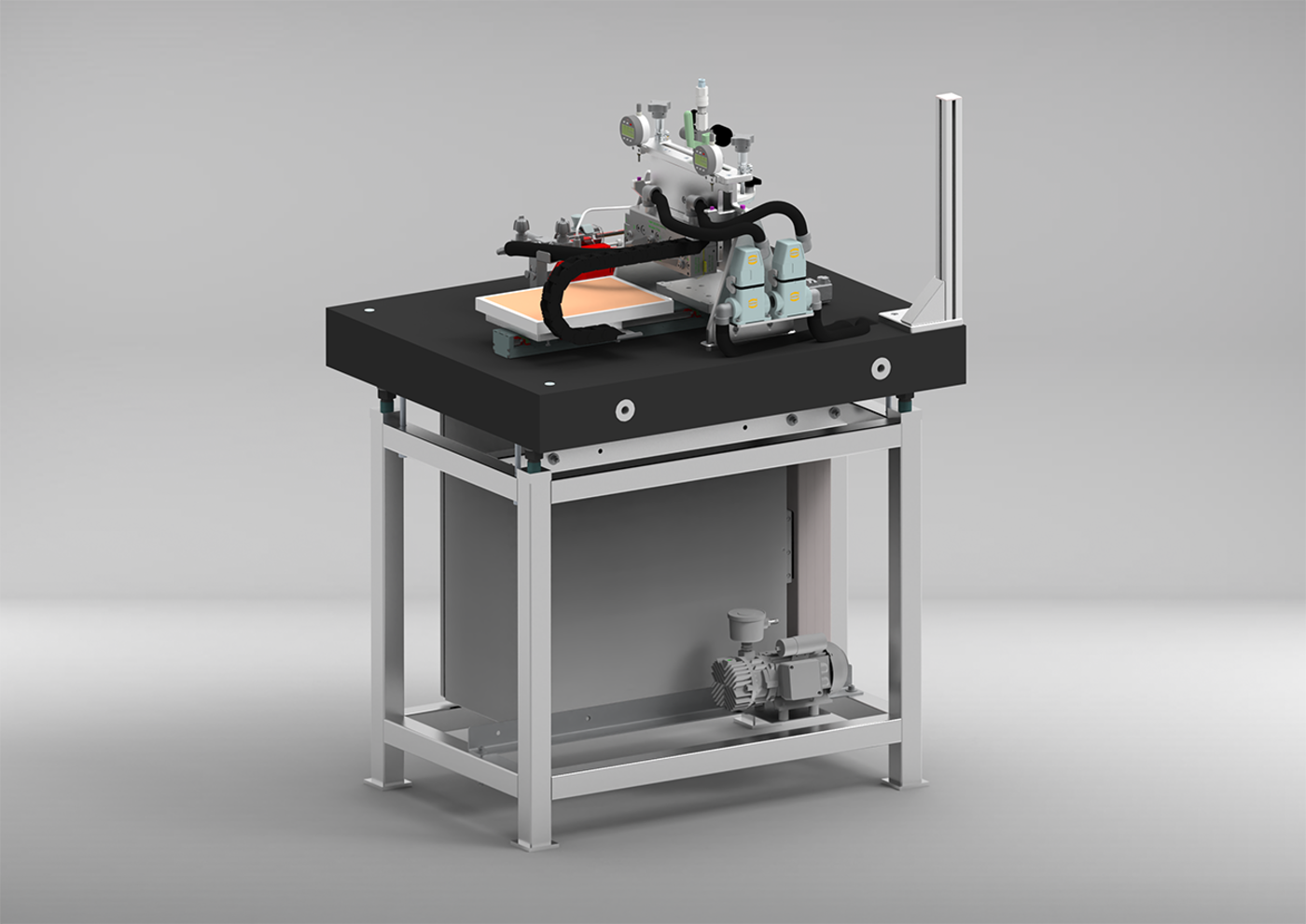

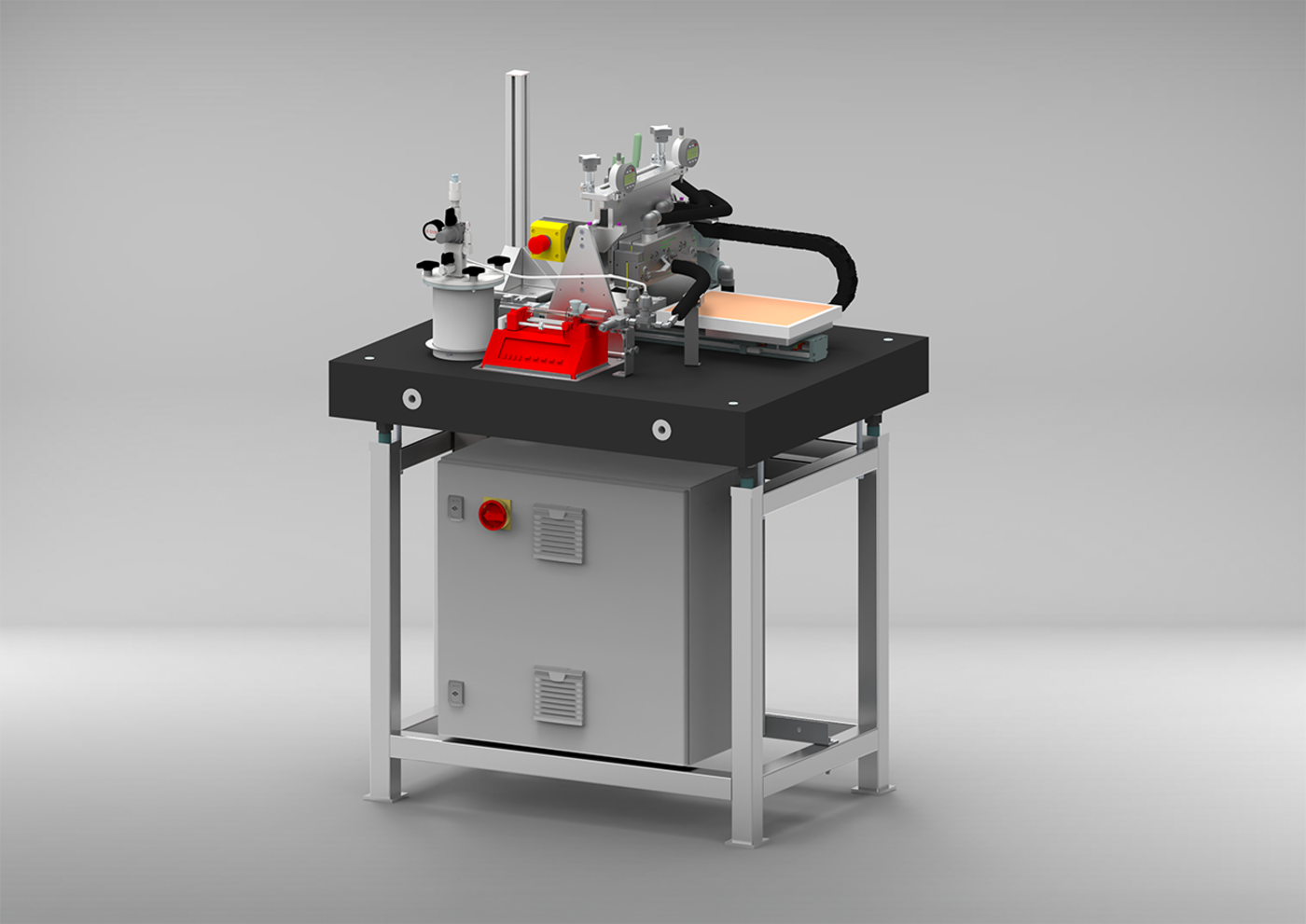

TABLE TOP COATER
Compact coating system for laboratory and small-batch production—bringing the same process expertise as our production systems to a benchtop format.
| Working width* | 210 mm x 297 mm (DIN A4) |
| Mechanical speed* | 0.5–4 m/min |
| Coating method | Slot-die coating |
| Dimensions | 1,000 mm × 800 mm × 1,432 mm |
* depends on customer requirements
Your wide-slot nozzle is designed and manufactured with the same precision as the nozzles for our industrial production systems. Optimized nozzle geometries, the highest manufacturing precision, and a thorough process analysis as a foundation enable coating results with an accuracy of up to ±1%.
By using a wide-slot nozzle on a laboratory scale, you achieve results that are significantly closer to actual production conditions than those obtained with doctor blade methods or other laboratory coating techniques. This provides a solid foundation for reliable and efficient process scaling.
Each wide-slot nozzle is designed for your specific fluids and process requirements. With the help of a customized shim set, different material formulations and process windows can be processed using the same nozzle without compromising coating quality.
Especially when working with valuable or limited-availability materials, the Table Top Coater enables meaningful trials with minimal resource usage. Thanks to optimized nozzle geometries and minimized dead-space volumes, only the actual amount of fluid required is used, significantly reducing development and testing costs.
Shorten your development times with rapid test cycles and reproducible coating results. New formulations can be evaluated and optimized efficiently and quickly. Precise process control and defined coating conditions ensure high repeatability and comparability.
