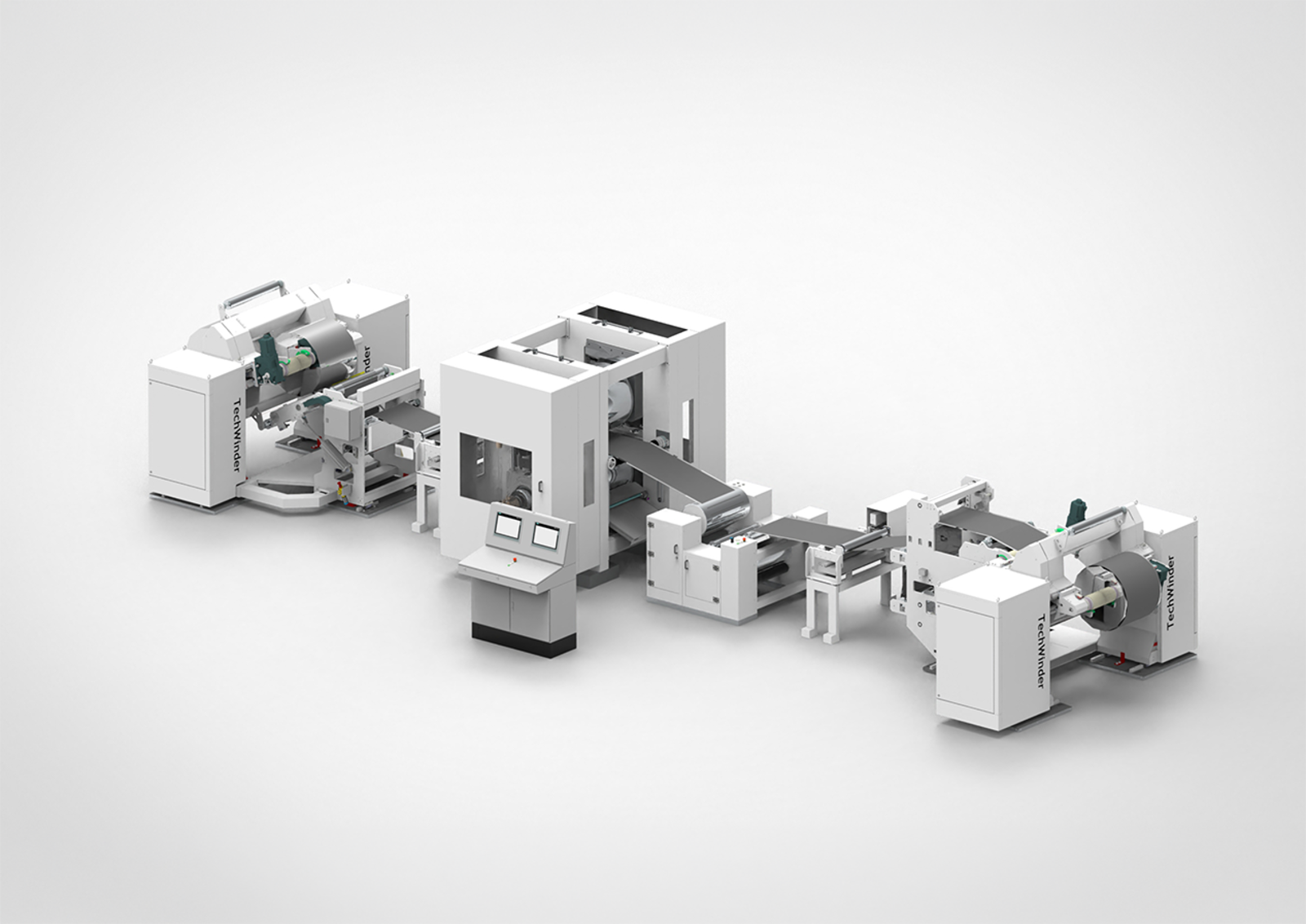

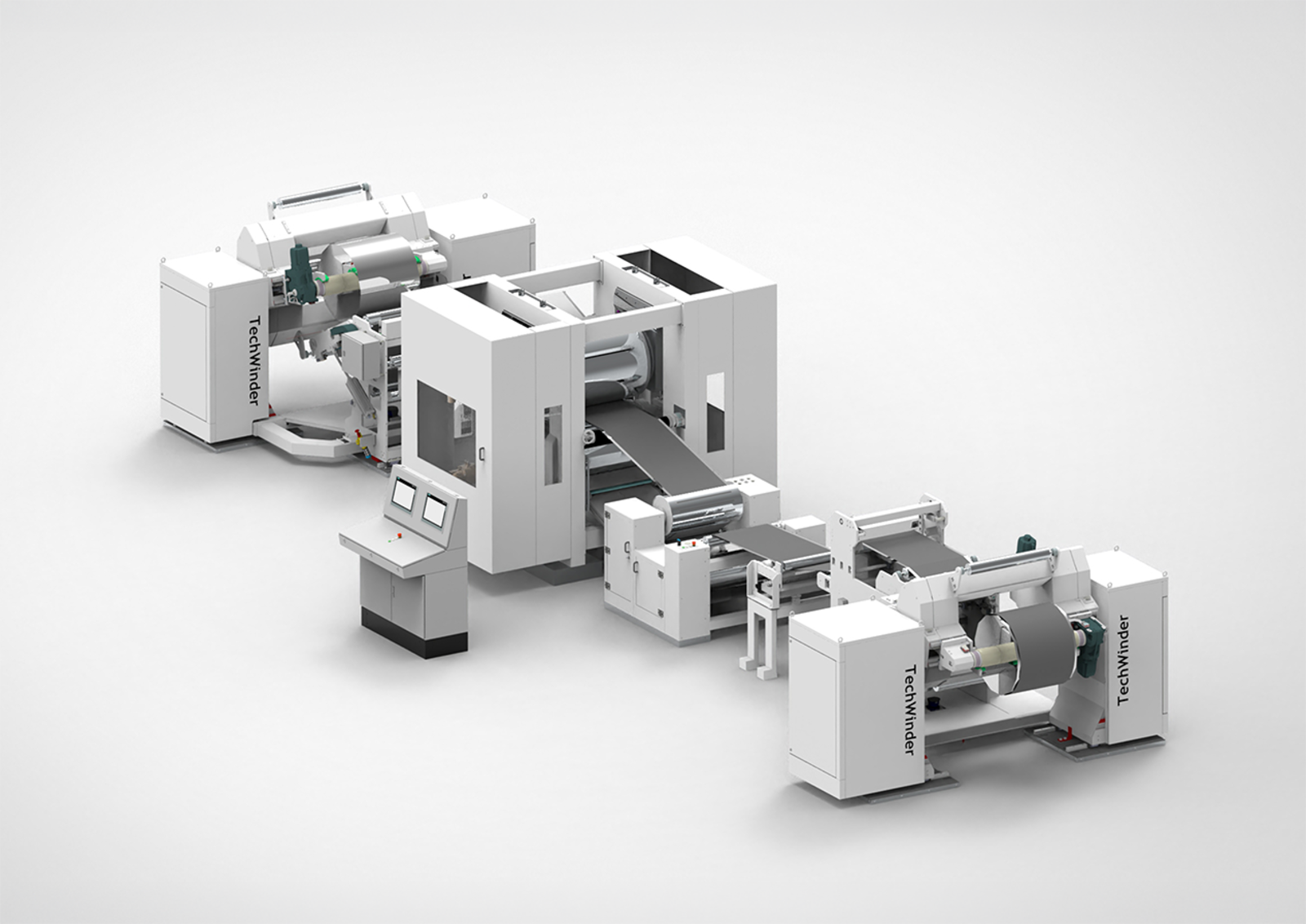

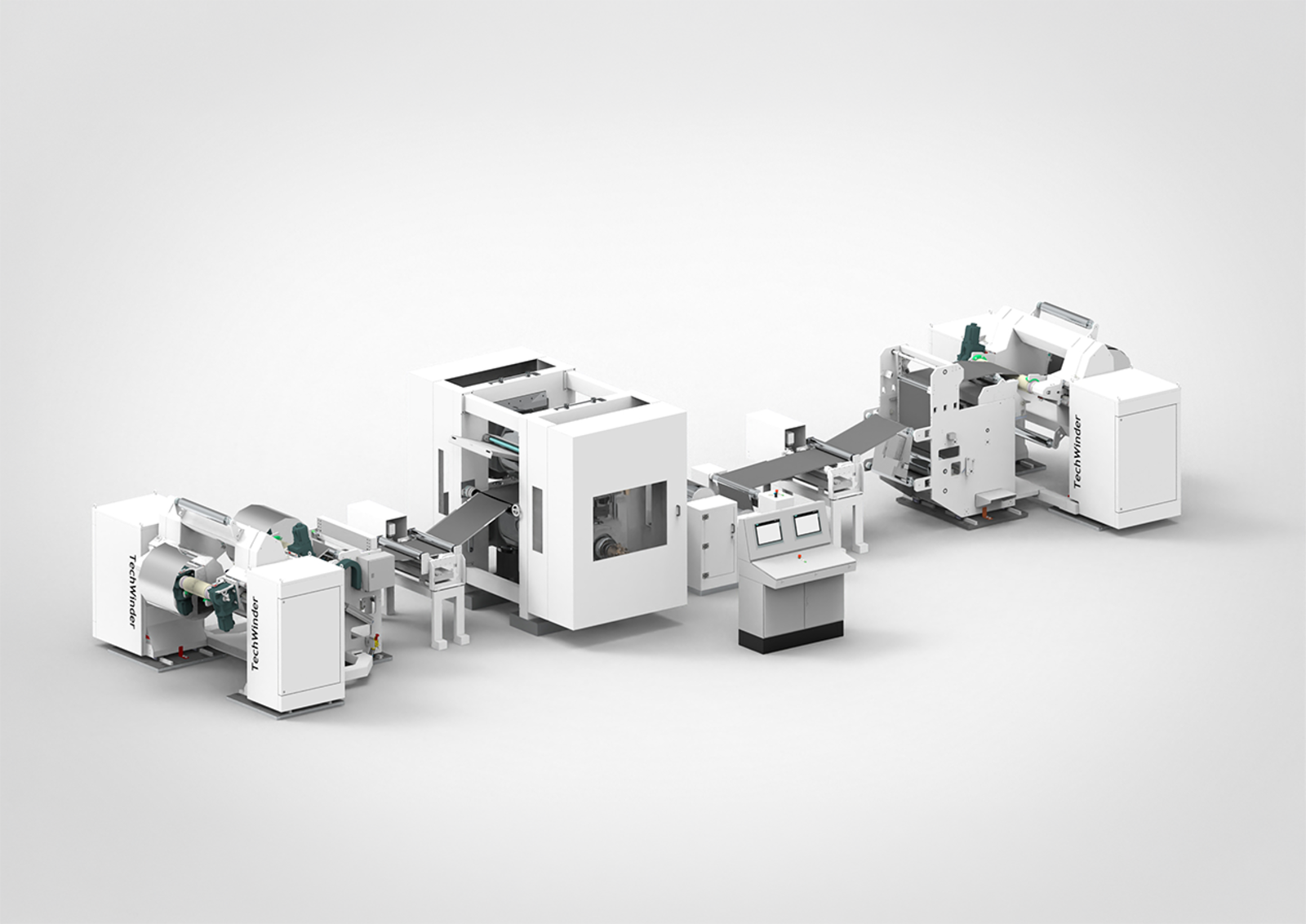

CalEndering Systems
JCS offers calendering systems tailored to the specific material properties and process requirements of our customers—delivering consistent compaction results and high product quality.
| Working widhts | Up to 1,200 mm |
| Calendar Program | 10-300 t |
| Load per unit length | Up to 4,400 N/mm |
| Mechanical speed* | 1-150 m/min |
| Slot precision | ± 1 μm |
| Roll temperature* | 25-220 °C |
* depends on customer requirements
Temperature-independent measurement of the calender gap, with repeatable accuracy of ±1 µm.
Force or gap control mode with precise, closed-loop servo-hydraulics.
Enabled by optional Edge Zone Heating technology and spreading rolls.
Efficient preheating of the electrode foil for stable, repeatable calendering processes.
Short setup times and high equipment availability—without the need for an overhead crane.
European supply chains for greater security of supply, shorter lead times and dependable availability.
Process-optimized roll design: For maximum uniformity, stable processes and repeatable results.
Built to meet the highest standards: high-precision, hardened and wear-resistant calender rolls for consistently reliable results
Surface hardness of up to 68 HRC: For high load-bearing capacity, lasting precision and maximum service life without surface ‘denting’
Wear-resistant coatings: High-performance surfaces in hard chrome or tungsten carbide, for a long service life and consistently high process quality
